ES 2000

Online insulating-oil care during operation – continuous drying without shutting down the transformer.

Whatever oil is in the transformer – water particles in particular lead to rapidly ageing oil and oxidation. The ES 2000 filters in the bypass flow online during transformer operation: it dries the insulating oil, cleans it of particles and residues and reduces the acid content – all without shutting down the transformer.

Online dryingWithout shutdownMade in Germany
ES 2000Online drying
Online
during operation
3 µm
absolute filter fineness
< 5 ppm
stable residual moisture
1,500 ml
drying capacity / cartridge

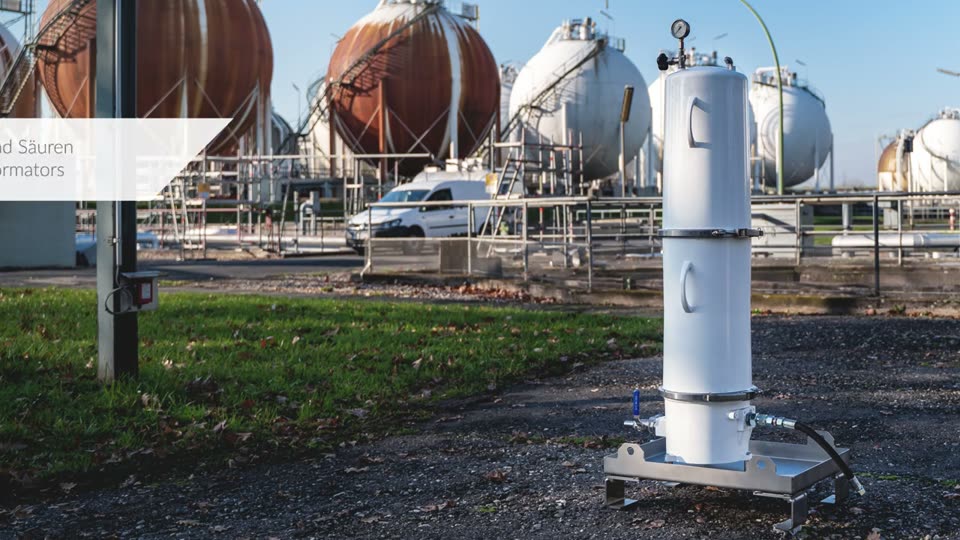

Videos

ES 2000 on video

Features

All benefits at a glance

Continuous online drying

Permanent removal of water from the insulating oil in the bypass flow – during operation of the transformer.

Removal of particles

High filter efficiency thanks to long contact time between oil and filter material – filter fineness 3 µm absolute.

Reduction of acid content

In addition to water and particles, the treatment also lowers the acid content and thus protects against oxidation and ageing.

Operation without shutdown

Filtration takes place in the bypass flow, without taking the transformer off the grid.

Pressure & leak monitoring

Self-priming pump incl. pressure and leak monitoring as well as a moisture sensor to indicate the drying level.

Cleaning of the entire oil system

The clean oil dissolves residues already deposited on components and in the tank – cleaning the entire oil system.

Process

How the treatment works

In the bypass flow during transformer operation – the ES 2000 draws in the oil, passes it slowly through the filter and drying cartridges and returns it cleaned.

01

Connect

The unit draws in the insulating oil at the lowest point of the transformer – online during operation.

02

Filter & dry

The oil flows slowly and at constant speed through the filter and drying cartridges.

03

Bind moisture

Cellulose and micro-filter cartridges reliably absorb water, particles and residues.

04

Return

The clean, dry oil is returned to the conservator or to another point on the transformer.

Technical details

Process
Bypass filtration, online during transformer operation

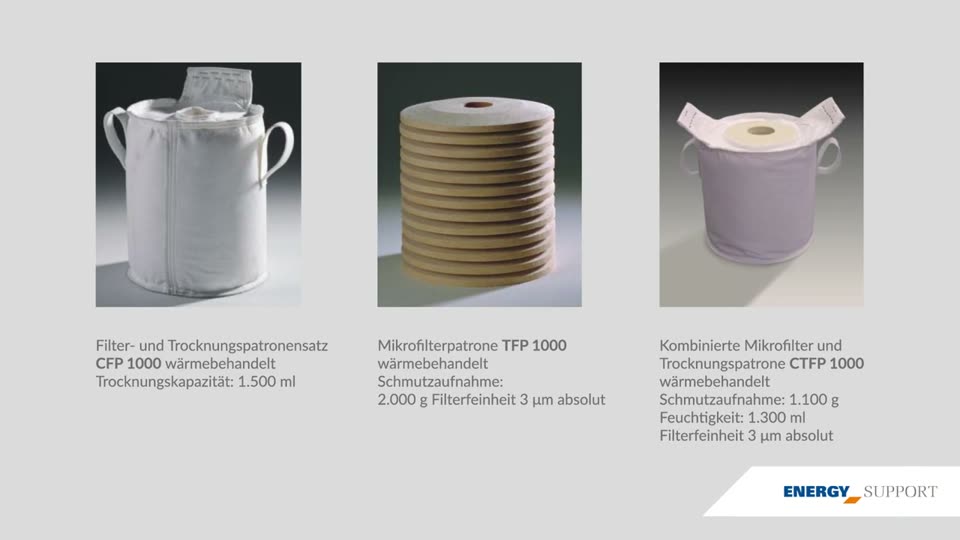

Cartridge set CFP 1000
Filter & drying cartridge (heat-treated), drying capacity 1,500 ml, incl. set of seals
Micro-filter cartridge TFP 1000
Heat-treated, dirt holding capacity 2,000 g, filter fineness 3 µm absolute, incl. set of seals
Combi cartridge CTFP 1000
Heat-treated, dirt holding capacity 1,100 g, moisture 1,300 ml, 3 µm absolute, incl. set of seals
Pump
Self-priming, incl. pressure and leak monitoring
Moisture sensor
To indicate the drying level
Options
Electrical control, mobile version in a housing or on a pallet with steering and fixed castors

Scope of delivery

  • ES 2000 treatment unit
  • Self-priming pump with pressure & leak monitoring
  • Moisture sensor (drying level)
  • Selectable set of filter & drying cartridges
  • Set of seals
